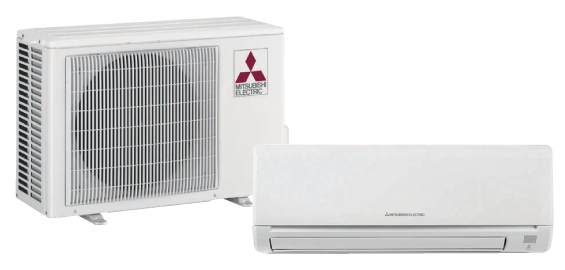

Mini Split Heat Pumps have incredible efficiency, are long-lasting and an affordable solution to zoned cooling and heating in your home. The unique design of the mini split system allows for installations in older remodeled homes as well as new construction.
Personalized Comfort with the i-see Sensor™
Select M-Series indoor units feature our i-see Sensor™ which automatically detects the temperature of troublesome regions closer to the ceiling and the floor.
Multi-stage Air Filtration
All indoor models use a sophisticated multi-stage filtration system to reduce contaminants such as allergens, viruses and bacteria from the air.
Smartphone Technology
Control your comfort remotely using your wireless remote or with your smartphone with optional RedLINK™ technology.
A rating of the seasonal efficiency of air-conditioning or heating units in cooling mode. The higher the number, the more energy efficient the unit is.
This unit is whisper-quiet, so you can enjoy your space without interruption.
This model has a cooling mode, allowing you to achieve precise temperature control during warm periods.
This model has a heating mode to ensure optimal comfort when your home isn't warm enough.
This model has multi-stage allergen filtration, removing particulates and contaminants from the air with continuous fan operation for better air circulation. The anti-allergen filter traps dust, allergens and other particles to improve indoor air quality.
Models equipped with a wireless remote control are compatible with optional RedLink™ enabled wireless controllers that offer smartphone and tablet control.
This model is equipped with the i-see Sensor™ and responds to troublesome regions closer to the ceiling and the floor. It scans the room and makes adjustments based on the ambient temperature to ensure optimal comfort.
This model uses Hyper-Heating INVERTER™ technology to offer exceptional performance down to -13º F outdoor ambient, with 100% heating capacity at 5º F outdoor ambient.
Mitsubishi Electric has revolutionized heat pumps so that you can take advantage of their high efficiency in any climate—even extreme cold.
Hyper-Heating H2I
Designed to provide comfortable indoor temperatures in extreme cold-climate conditions (as low as -13° F) while saving energy and money.
Minimal Energy Consumption
INVERTER zoning systems deliver only the amount of hot air needed to achieve the desired temperature: no more, no less.
Warm from the Start
High-rotation-speed INVERTER systems with hot-start technology ensure that you feel warm air immediately.

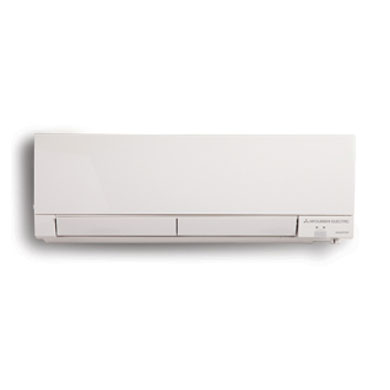

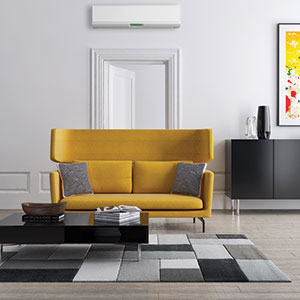

Wall Mount Deluxe
This design type is best used for:

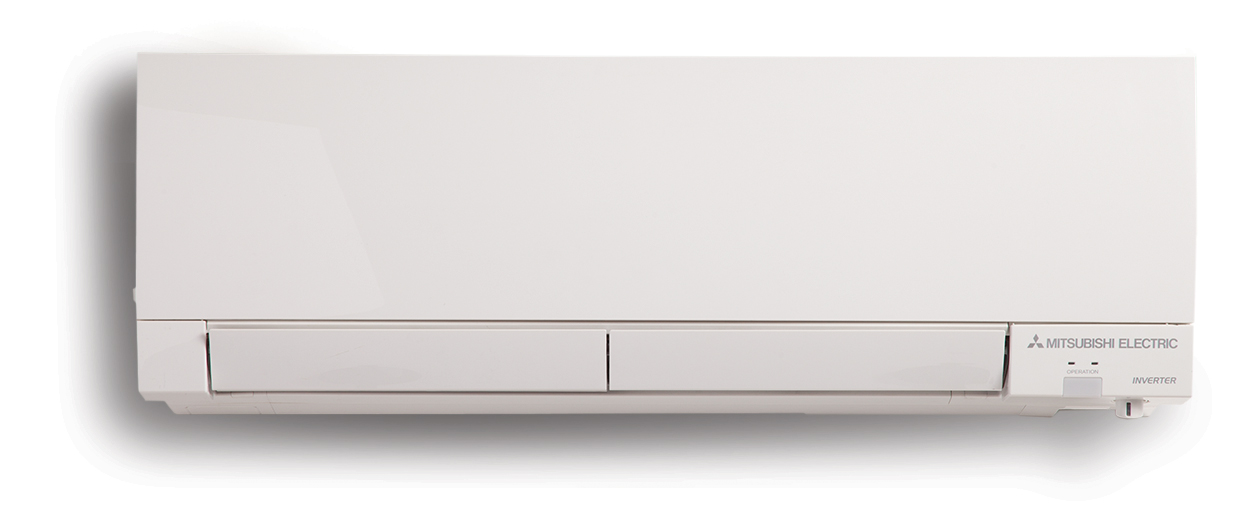

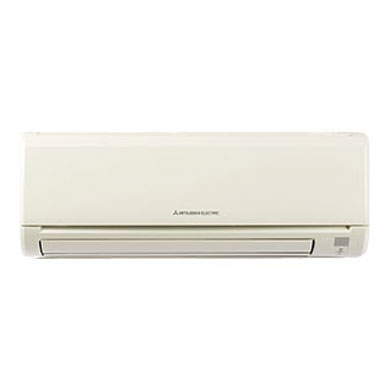

Standard Wall Mount
This design type is best used for:

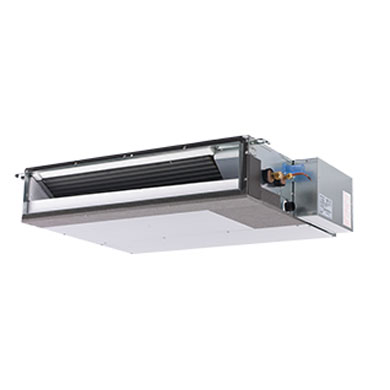

Horizontal Ducted
This design type is best used for:

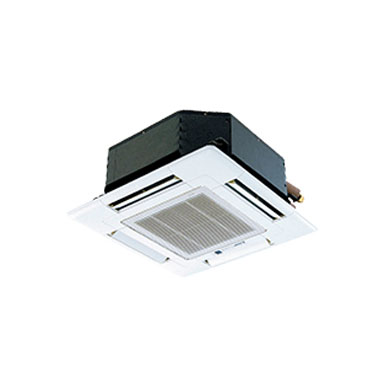

Ceiling-Recessed
This design type is best used for:
Comfort without Compromise
In the winter, a mini split draws heat from the outside air and circulates it into your home. In the summer, it reverses the process and draws heat from your interior air and releases it outdoors. It also dehumidifies the indoor air as it cools it.
The mini split serves as an air conditioner by absorbing heat from indoor air and pumping it outdoors. The mini split contains an indoor coil which, in turn, contains a very cold liquid refrigerant. As indoor air passes over the indoor coil, the refrigerant-cooled coil absorbs heat from the air and so quickly cools that air.
The cooled air cannot hold as much moisture as it did at a higher temperature. The excess moisture condenses on the outside of the coil, resulting in the dehumidification of the air. The cooled, dehumidified air is then forced (by a fan) to circulate throughout the space.
At the same time, the absorption of heat by the refrigerant turns the refrigerant from a liquid into a vapor. A compressor pumps the heat laden vapor through a vapor line to an outdoor coil which discharges the heat extracted from the indoor air. As the heat is discharged, the vapor is cooled and changes back into a liquid refrigerant. The refrigerant is then pumped back through a liquid line to the indoor coil and the cycle is repeated.
The mini split contains a reversing valve which reverses the flow of refrigerant and thus allows the mini split to serve as a heater during cold weather.
A mini split serves as a heater by absorbing heat from outdoor air and pumping it indoors. As the outdoor air passes over the outdoor coil, heat from that air is absorbed by the refrigerant contained inside the coil.
The absorption of heat changes the refrigerant from a low-temperature liquid to a low temperature, low-pressure vapor. The vapor then passes through a compressor where it is compressed into a high pressure, high temperature vapor. The hot vapor then circulates into the indoor coil. As indoor air passes over the indoor coil, it absorbs heat from the coil. The warmed air is then redistributed through the space.
The MVZ can replace an aging furnace or forced-air system, making use of existing ductwork to ensure desired comfort is maintained throughout your home.
One inch foam R4.2, fiberglass-free insulation reduces condensation and boosts efficiency.
Connect up to seven additional indoor air-handling units to address cold or warm spots, providing added on-demand comfort conditioning in specific rooms.

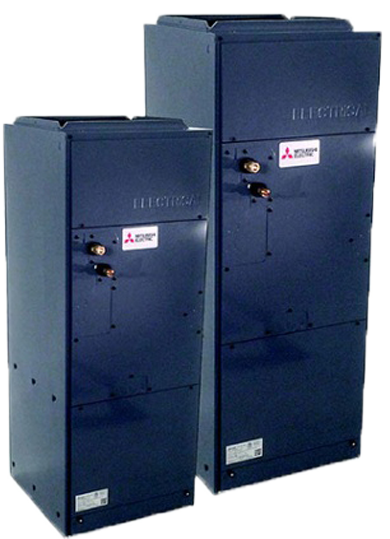

Multi Positioned Ducted Air Handlers
In this introductory video, learn about the features, benefits and applications of our new MVZ multi-position air handler.
